Product Description
Features

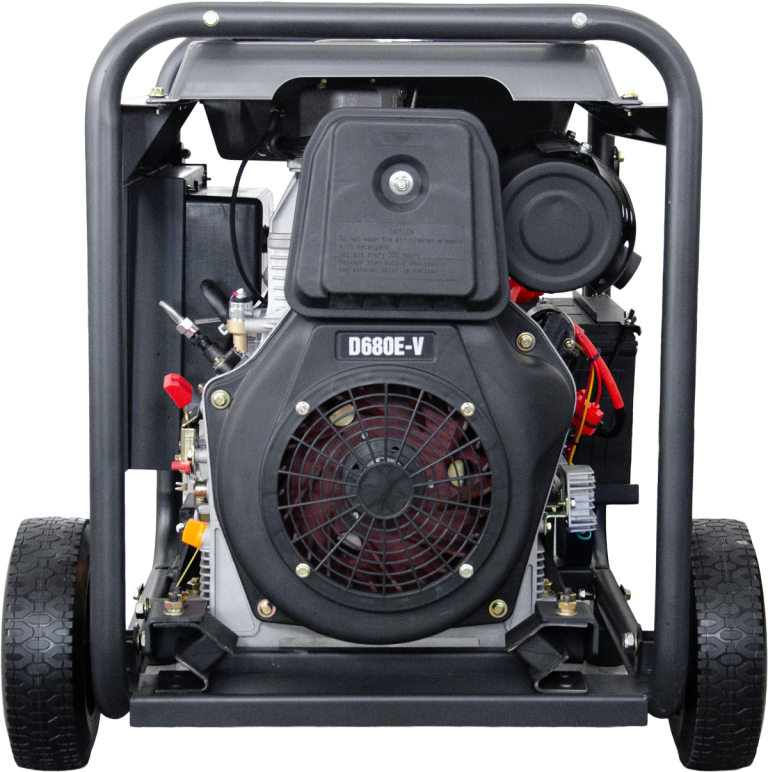

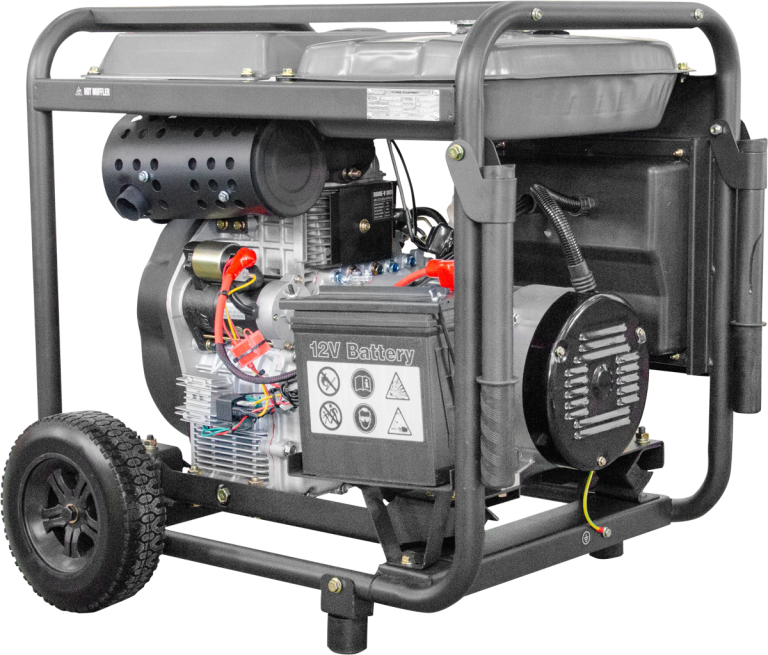

BE 10kVA Switchable 3-Phase / Single Phase electric start open frame diesel generator with RCD. Ideal for standby site use, commercial use, tradesmen or simply home / garage use. The G10000D-ILET3 is powered by a 668cc / 15hp economical single cylinder 4-Stroke diesel engine.
- RCD & IP66 Outlets
- Supler Clean Power Output <5% THD
- Automatic Voltage Regulation
- On Board Battery Charger
- 2-Wire Start Ready
- Emergency Stop
- Wheel & Handle Kit
Specifications
- Voltage: 240 / 400 V
- Continuous Rated Watts: 7.2 kW / 10 kVA
- Peak Rated Power: 7.6 kW / 10.6 kVA
- Frequency: 50 Hz
- MAX Current: 33 / 15.3 A
- Outlets (A): 15A 240V & 32A 415V
- Alternator Model: AL8-3
- Power Factor: 1 / 0.8
- Total Harmonic Distortion % (THD): <5%
- Engine Model: D680E
- Run Time @ 75% Load: 4
- Fuel Tank: 10 L
- Noise Level @ 7 M: 79 dBA
- Engine Power: 15 HP
- Engine Displacement: 678 CC
- Starting Type: Electric
- Voltage Regulation: Brush / AVR
- RCD/M.E.N Link: Yes
- On Board Battery Charger: Yes
- 2-Wire Start Ready: Yes
- ATS Ready: No
- Emergency Stop: Yes
- Wheel & Handle Kit: Yes
- Lifting Point / Bar: No
- Net Weight: 140 kg
- Gross Weight: 148 kg
- Product Dimensions (cm): 76 x 55 x 67
- Individual Carton Size (cm): 78 x 57 x 70
