Product Description

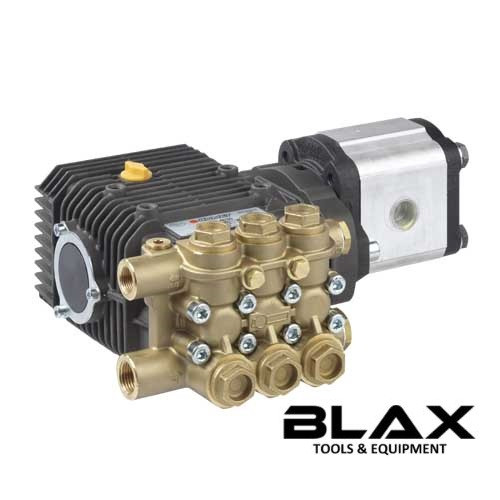

Italian Manufactured Motor Pump Units
GROUP 2 Hydraulic Engine (20 cc)
- Brass Pump Head
- Reversible Crankcase for Right or left Hand Mounting
- Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
- Solid Ceramic Plungers
- High & Low Pressure Seals: High Quality Buna-Textile Packings
- Additional Anti-Extrusion Ring under the Seal
- Solid Brass Manifolds
- Special Forged Brass Oversized Connecting Rods
- Die-Cast, Anodized Aluminum Crankcase
- Highly Quality Tapered Roller Bearings
- Optimal Oil Bath for High Speed Operation
PRESSURE WASHER
- 3000 PSI (200bar)
- 15.1L/min (4gpm)
- 1450RPM
- 5kW
- 15.4Kg
HYDRAULIC MOTOR
- 20CC
- 29.6 L/min (7.8 US gpm)
- 2351 psi (162.1 bar)
Ideal for use in confined or spark free areas where petrol engines / electric motors cannot be used.
Units can be fitted directly to trucks and machines that have a hydraulic drive.
Use on equipment such as:
- garbage trucks
- cement mixers
- skip loaders
- tractors
DATASHEET & HYDRAULIC REQUIREMENTS
